Whether you’re building a new home, tackling a major renovation, or you’re a contractor managing a project, the construction process has many critical stages. One phase that can make or break the comfort and efficiency of a home is the HVAC rough in. This is the point where all the internal components of your heating, ventilation, and air conditioning system are put in place before the walls go up. Getting it right from the start is essential.
An HVAC rough in is not just about placing vents and running lines; it’s a detailed process that lays the foundation for your home’s entire climate control system. A single mistake here can lead to costly repairs, poor performance, and even safety hazards down the road. That’s why having a comprehensive checklist is not just helpful, it’s crucial.
This guide will walk you through the essential steps to ensure your HVAC rough in is done correctly, the first time.

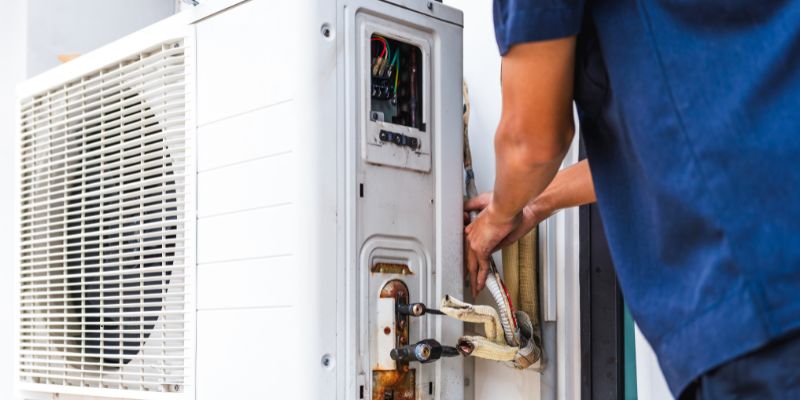

Why a Rough-In Checklist Matters
Think of an HVAC rough in as the skeleton of your home’s comfort system. Before the drywall, paint, and finishes are applied, your technicians are working behind the scenes, installing the ductwork, refrigerant lines, and wiring that will keep you cool in the summer and warm in the winter.
Without a structured plan, it’s easy to miss small but vital details. A proper checklist ensures every component is installed according to the manufacturer’s specifications, building codes, and the home’s unique design.
This systematic approach helps prevent common issues like inefficient airflow, energy waste, and premature system failure.
For contractors, it standardizes quality across projects. For homeowners, it provides peace of mind knowing the job was done thoroughly and professionally.
Following a checklist helps guarantee:
- Code Compliance: Local and national building codes for HVAC installations are strict. A checklist ensures all requirements for clearances, ventilation, and safety are met, preventing failed inspections that can delay your project.
- System Efficiency: Proper installation is key to your HVAC system running at peak efficiency. This translates to lower energy bills and a smaller carbon footprint.
- Long-Term Reliability: A well-executed rough in minimizes stress on the HVAC components, extending the lifespan of your equipment and reducing the likelihood of future breakdowns.
- Optimal Comfort: Correct duct sizing and register placement ensure balanced air distribution, eliminating hot or cold spots throughout your home.
Key Components to Inspect
A successful HVAC rough in involves more than just connecting pipes and wires. It requires careful inspection of several key areas. Here’s what should be on your checklist.
1. Plans, Permits, and Site Preparation
Before any physical work begins, the groundwork must be laid.
- Permits and Plans On-Site: Ensure the approved building permit and HVAC plans are readily available at the job site. The address should be clearly posted.
- Duct Design and Layout: Verify that the duct layout matches the approved plans. This includes the correct sizing, routing, and location of all supply and return ducts. The design should be based on a proper load calculation (Manual J) to ensure the system is sized correctly for the home.
2. Ductwork Installation
The ductwork is the circulatory system for your home’s air. Flaws here will impact the entire system.
- Proper Sealing: All joints, seams, and connections in the ductwork must be sealed with mastic, a gooey substance that hardens to create an airtight seal. Tape alone is not sufficient. This prevents conditioned air from leaking into unconditioned spaces like attics or crawlspaces.
- Secure Support: Ducts must be properly supported to prevent sagging, which can create dips where air can stagnate or water can collect. Metal ducts should be supported every 10 feet, while flex ducts require support according to the manufacturer’s guidelines to avoid kinks and restrictions.
- Insulation: Any ducts running through unconditioned spaces (like attics, garages, or crawlspaces) must be insulated. This prevents energy loss and condensation. The R-value of the insulation should meet or exceed local energy codes.
- Clearance from Ground: In crawlspaces, ductwork should have a minimum of 4 inches of clearance from the ground.
3. Equipment Placement and Clearances
The location of your furnace, air handler, and condensing unit is critical for performance and serviceability.
- Furnace and Air Handler: Ensure the unit is installed with adequate clearance for maintenance. A working space of at least 30 inches deep and wide in front of the unit is typically required. Fuel-burning appliances should not be installed in closets, bathrooms, or sleeping areas unless they are direct-vent units.
- Ignition Source Elevation: In a garage, any appliance with an open flame or ignition source must be elevated at least 18 inches above the floor to avoid igniting flammable vapors from vehicles.
- Condensate Drain Lines: For air conditioners and high-efficiency furnaces, the condensate drain line must be properly sloped (at least 1/8 inch per foot) to ensure gravity drainage. An auxiliary drain pan with a separate drain line or a shutoff switch is required in locations where an overflow could cause water damage, such as an attic.
4. Wiring and Electrical Connections
Electrical work must be done with precision to ensure safety and proper function.
- Dedicated Receptacle: An electrical outlet should be installed near the indoor equipment for servicing purposes.
- Thermostat Wiring: Low-voltage wiring for the thermostat should be run to the correct location, away from heat sources like windows or lamps that could affect its readings.
- Disconnect Switch: A means of disconnecting power must be located within sight of the appliance. This is a crucial safety feature for technicians.
5. Ventilation and Exhaust
Proper ventilation is essential for indoor air quality and appliance safety.
- Clothes Dryer Vent: The dryer vent duct must be made of smooth metal, run independently of other systems, and terminate outdoors with a backdraft damper. The total length should not exceed 35 feet, with deductions for every bend.
- Kitchen and Bath Exhaust: Range hoods and bathroom fans must be ducted to the outside, not into the attic. These ducts should also be insulated in unconditioned spaces to prevent condensation.
- Combustion Air: Fuel-burning appliances need a steady supply of air for combustion. The checklist should verify that combustion air ducts are properly sized and routed from the outdoors or a sufficiently ventilated space, per code requirements.
Common HVAC Rough In Issues
Even with a plan, mistakes can happen. Being aware of common pitfalls can help you spot them before they become bigger problems.
- Incorrect Duct Sizing: Ducts that are too small can restrict airflow, making your system work harder and less efficiently. Ducts that are too large can lead to low air velocity and poor distribution.
- Poorly Sealed Ducts: Leaky ducts are a major source of energy waste. It is estimated that up to 30% of conditioned air can be lost through leaks in the duct system.
- Restricted Airflow: Kinked flex ducts, sharp bends, or ducts that are crushed or compressed can severely impede airflow, leading to poor performance and added strain on the system’s fan motor.
- Ignoring Code Requirements: Skipping steps or taking shortcuts to save time can lead to failed inspections, project delays, and fines. Always adhere to local building and energy codes.
Trust the Experts
An HVAC rough in is a complex job that forms the backbone of your home’s comfort. While a checklist is a powerful tool, it’s most effective in the hands of a skilled and experienced professional. The quality of the installation is just as important as the quality of the equipment you choose.
At Fahrenheit AC, we understand the critical importance of getting the HVAC rough in right. Our team of certified technicians combines meticulous attention to detail with years of hands-on experience in Florida. We don’t just follow a checklist; we treat every installation as if it were for our own home. From initial design and load calculations to the final sealing of every duct, we are committed to providing the highest level of quality and service.
If you’re planning a new construction or renovation project, don’t leave your comfort to chance. Partner with a team that has a proven track record of excellence.
