7 Warning Signs Your Condensate Drain Line Is Clogged

Water around your indoor AC unit, a full drain pan, or an air conditioner that suddenly shuts off can indicate a condensate drainage problem. One possible cause is a clogged condensate drain line.

Your AC produces condensation as it removes moisture from indoor air. That water collects in a drain pan and normally leaves the system through the condensate drain line. When the line becomes blocked, water can back up and cause leaks or water damage. On systems with a condensate safety switch, the AC may also shut down automatically.

These symptoms can have other causes and should not be treated as proof of a clogged drain line. The following warning signs can help you identify when the condensate drainage system needs attention.

What Is a Condensate Drain Line?

How an AC Condensate Drain Line Works

As your air conditioner cools indoor air, moisture condenses on the cold evaporator coil. The resulting water collects in a condensate drain pan and flows through the AC condensate drain line to a discharge point.

Depending on the system, condensate drains by gravity or is moved by a condensate pump. Either way, the drain line provides a path for moisture to leave the indoor HVAC equipment.

Where Is the Condensate Drain Line Located?

The drain line is generally connected to the condensate drain pan at the indoor air handler or evaporator coil assembly. It’s often made from PVC and may run through an attic, crawl space, utility area, or another part of the home before reaching its discharge point.

The exact configuration varies by installation. If you cannot safely identify the line, don’t remove HVAC panels or access electrical components just to locate it.

7 Warning Signs Your Condensate Drain Line Is Clogged

Water Is Pooling Around the Indoor AC Unit

Water pooling around the indoor AC unit is a clear reason to investigate the drainage system.

If the condensate drain line is blocked, water may stay in the drain pan instead of draining away. As the level rises, it can spill around the air handler.

A clogged line is not the only cause. A damaged drain pan, condensate pump problem, frozen evaporator coil, or other drainage issues can also cause an AC to leak.

The Condensate Drain Pan Is Full or Overflowing

The drain pan is designed to collect condensate and direct it toward the drainage system. When the drain line is restricted, water can accumulate in the pan instead of draining normally.

A pan that stays full or begins to overflow should be addressed promptly. Standing water risks leakage and property damage.

If the pan is full but the drain line is not blocked, the problem may be elsewhere in the drainage system. The pan itself can also be damaged.

You Notice Water Stains or Water Damage

A condensate problem may show through damage rather than an obvious leak.

Look for:

• Ceiling stains below the indoor unit
• Damp drywall
• Discoloration around the air handler
• Moisture near the HVAC equipment
• Rust on affected components

This is especially concerning when an air handler is installed above a finished living area. Continued leakage can damage building materials even if the AC continues to run.

Your AC Has a Musty or Damp Smell

A musty odor can indicate excess moisture around the HVAC system. If condensate is not draining properly, standing water can promote mold and mildew growth.

The smell alone does not prove the drain line is clogged. Other moisture problems in the HVAC system can produce similar odors. When a musty smell occurs with water buildup, the drainage system should be checked.

Your AC Shuts Off Unexpectedly

Some HVAC systems use a condensate safety switch, also called a float or overflow switch. It can interrupt AC operation if the water level in the drain pan becomes too high.

This helps prevent the drain pan from overflowing and reduces the risk of water damage. If your AC repeatedly shuts off and you notice water around the indoor unit, the condensate drainage system should be investigated.

Your AC Will Not Turn On or Stay Running

A clogged drain line can cause a condensate safety switch to interrupt AC operation.

Not every AC that fails to start has a drainage problem. Thermostat, electrical, airflow, motor, and other HVAC issues can cause similar symptoms.

Look for signs like a full drain pan, standing water, or an unexpected shutdown. If the cause is unclear, professional diagnosis is safer.

Your AC Is Not Cooling Properly, or Your Home Feels More Humid

A drainage problem can affect comfort when water buildup causes a safety switch to shut the AC down. If the system stops, indoor temperature and humidity can rise.

Poor cooling or increased humidity can also result from many other HVAC problems. A clogged drain line should be considered alongside other causes rather than assumed to be the diagnosis.

What Causes a Condensate Drain Line to Clog?

Dirt, Dust, and Debris Buildup

Dust, dirt, dander, and other debris can accumulate in the drainage system and restrict water flow. Over time, buildup can reduce the drain line’s ability to carry condensate away from the indoor unit. Parts of the line exposed to the environment may also become obstructed by debris.

Mold and Mildew Buildup

Condensate drainage systems remain exposed to moisture during normal AC operation. Persistent moisture can contribute to mold and mildew growth, which may become part of a blockage. A recurring clog may require more than just clearing the immediate obstruction.

Drain Pan Buildup or Drainage Problems

Not every condensate drainage problem starts inside the drain line. A dirty, damaged, or improperly draining pan can block condensate from leaving the system as intended.

A damaged pan can also allow water to escape around the indoor equipment. If the pan repeatedly fills or leaks, the entire condensate drainage system should be inspected.

What Should You Do If Your Condensate Drain Line Is Clogged?

Turn Off the AC If Water Is Backing Up

If water is pooling, overflowing, or leaking around the indoor unit, turn off the air conditioner using the thermostat.

Turning off the AC stops it from producing more condensate while the problem is assessed. If water is near electrical components, don’t touch the equipment. Contact an HVAC professional.

Check for Obvious Signs of Water Buildup

A safe visual inspection can help identify the problem's severity. Look for:

• Standing water around the indoor unit
• A full or overflowing drain pan
• Water stains or damp areas
• Water dripping from the HVAC equipment
• Moisture accompanied by a musty odor

Do not remove electrical covers or dismantle HVAC components to check a suspected clog.

When to Call an HVAC Professional

Professional service is appropriate when the problem persists, recurs, or involves significant water leakage.

Have the system inspected if you notice:

• Repeated drain-line clogs
• An overflowing drain pan
• Water damage
• Repeated AC shutdowns
• An AC that will not operate normally
• Water near electrical components

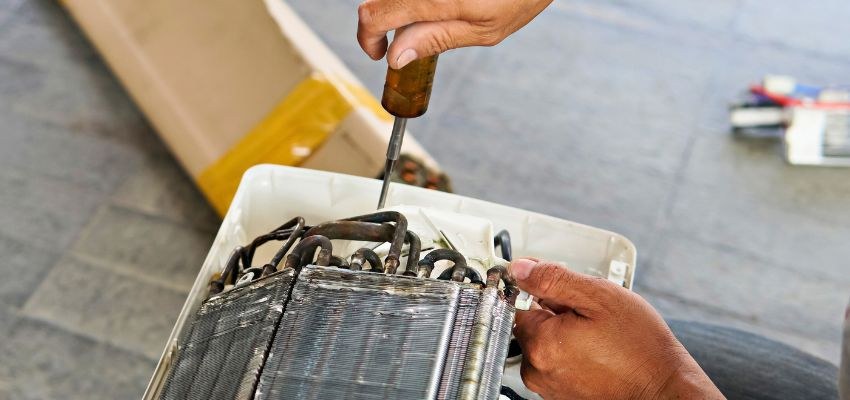

A technician can inspect the condensate pan and HVAC drain line, identify the source of the problem, clear the drainage system, and check for related HVAC faults.

How Can You Prevent a Condensate Drain Line From Clogging?

Schedule Regular AC Maintenance

Routine AC maintenance gives a technician an opportunity to inspect the condensate pan and drain line for buildup, leaks, and other drainage problems.

The right maintenance schedule depends on the equipment, installation, operating conditions, and manufacturer’s recommendations. Your HVAC professional can advise you on the appropriate schedule.

Keep the HVAC System Clean

Keeping the area around your indoor HVAC equipment clean can help limit dust and debris around the system. Regular filter upkeep supports normal AC operation, although a clean filter doesn’t guarantee the condensate drain line will stay clear.

Address Recurring Clogs

A drain line that repeatedly clogs needs more attention than another quick clearing. Recurring blockages can indicate persistent buildup, a drainage problem, a damaged component, or another underlying issue. Finding the cause can help prevent the problem from returning.

Frequently Asked Questions

How do I know if my condensate drain line is clogged?

Water around the indoor AC unit, a full drain pan, water damage, a musty odor, or an unexpected AC shutdown can indicate a possible clog. None of these signs alone confirms the diagnosis.

What happens if a condensate drain line is clogged?

Condensate cannot drain normally, so water can accumulate in the drain pan and overflow. On systems with a condensate safety switch, rising water may cause the AC to shut down.

Can a clogged AC drain line cause the AC to stop working?

Yes. If a clogged line causes the condensate level to rise high enough, a safety switch may interrupt AC operation. Other mechanical, electrical, thermostat, and airflow problems can prevent an AC from running.

How often should an AC condensate drain line be cleaned?

There’s no universal cleaning interval for every system. Maintenance depends on the equipment, installation, operating conditions, and manufacturer’s recommendations. Regular AC maintenance can include inspection of the drain pan and line.

Can I unclog an AC condensate drain line myself?

Some homeowners may perform limited maintenance on certain systems, but the method depends on the equipment and installation. If water is overflowing, the AC is not operating, the clog keeps returning, or unsure what you’re accessing, have an HVAC professional handle the problem.

Why does my AC drain line keep clogging?

Recurring clogs can be caused by ongoing debris or biological buildup, drain pan problems, or another drainage issue. Repeated blockages warrant inspection to find the underlying cause.

Does a clogged condensate drain line affect AC efficiency?

A clogged drain line is mainly a drainage problem and doesn’t necessarily reduce AC efficiency. It can cause water to accumulate and may trigger a safety shutdown on systems with an overflow switch. If your AC is cooling poorly, other HVAC problems should be considered.

When to Get Help With a Clogged Condensate Drain Line

Water buildup, an overflowing drain pan, repeated shutdowns, and other drainage-related symptoms shouldn’t be ignored. A clogged condensate drain line is one possible cause, but persistent problems or water damage warrant professional diagnosis.
