Main HVAC Components: What They Are and How They Work

An HVAC system relies on interconnected components that control operation, move air, and produce or transfer heat. The exact combination varies by system, but common components include the thermostat, capacitors, evaporator coil, compressor, condenser coil, expansion device, refrigerant, air handler, blower motor, furnace, and ductwork. Ventilation equipment can also be part of an HVAC system, depending on the home’s design.

You set the thermostat to 72°F and, moments later, cool air flows from the vents. Behind that simple result, multiple parts work together. An electrical signal triggers the system. Refrigerant, motors, coils, and ductwork then remove heat from your home and deliver conditioned air through your vents.

Most homeowners never think about these parts until a technician mentions a “capacitor” or “evaporator coil” during a service call. But knowing what each component does can help. It makes it easier to understand how your system works and what might be going wrong when a problem comes up.

What Are the Main HVAC Components?

Residential HVAC systems include several types of components. The specific equipment depends on your home’s setup. Common configurations include central air conditioning, a furnace, a heat pump, or a combination of these.

Thermostat and Control Components

The thermostat monitors indoor temperature and compares it to your selected setpoint. When heating or cooling is needed, it sends a signal to the HVAC system. That signal travels through low-voltage controls to relays, contactors, or control boards. These components then activate the appropriate equipment.

Capacitors provide electrical assistance to certain motors during startup and operation. In many air-conditioning systems, they help the compressor and fan motors start and run properly. A failing capacitor can cause a motor to struggle to start, hum, or shut down.

Evaporator Coil

The evaporator coil is typically installed in the indoor air handler or in a coil cabinet near the furnace. It sits directly in the path of the indoor airstream. Cold, low-pressure refrigerant flows through the coil while warm indoor air passes across its fins.

Heat from the indoor air transfers to the refrigerant, causing it to evaporate. The air leaving the coil is therefore cooler. This heat exchange is the central step in the cooling process: the system isn’t creating cold air so much as removing heat from the air inside your home.

Compressor

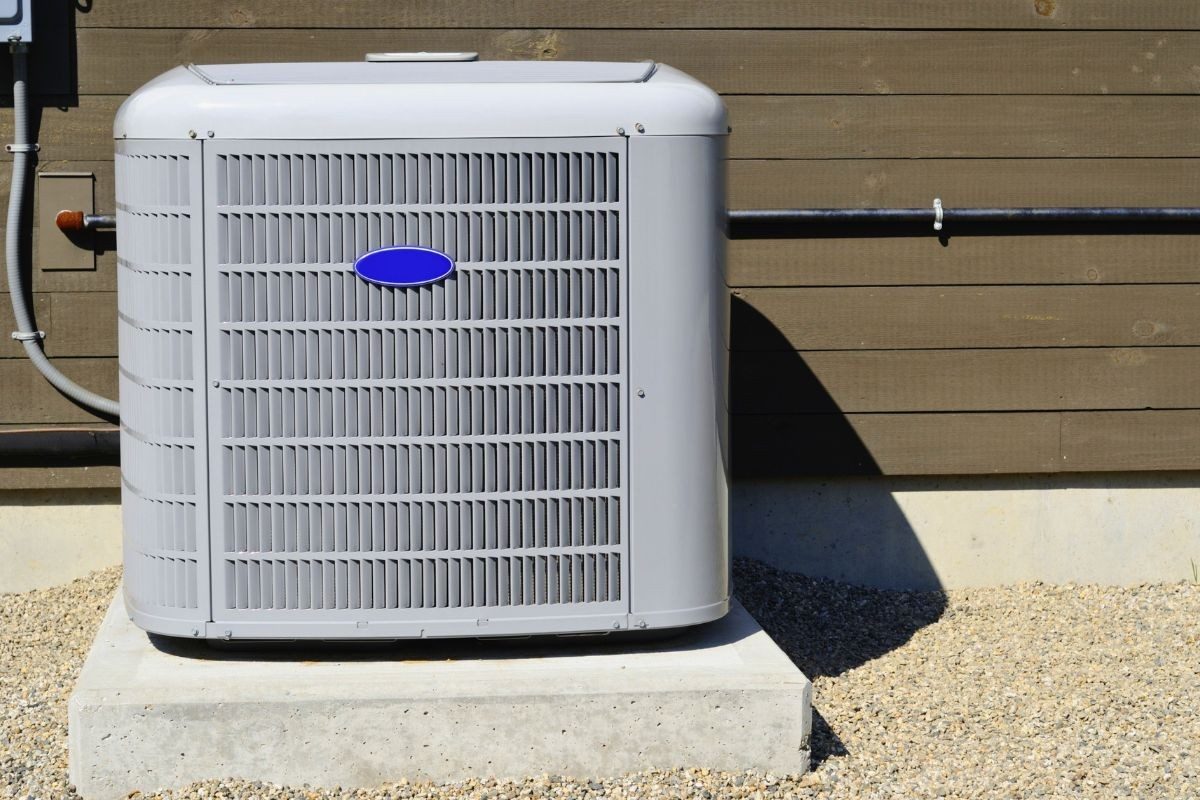

Located in the outdoor unit of a typical split-system air conditioner, the compressor draws in low-pressure refrigerant vapor from the evaporator. It then compresses that vapor, raising both its pressure and temperature. The resulting high-pressure vapor then travels to the condenser coil.

The compressor is a critical part of the refrigeration cycle. Its compression process maintains the pressure difference that keeps refrigerant circulating through the system. If it fails, the air conditioner generally cannot complete the cooling cycle, even if the other components are operating.

Condenser Coil and Outdoor Fan

Once hot, high-pressure refrigerant reaches the condenser coil, it needs to release the heat it picked up indoors. The outdoor fan moves air across the coil, allowing heat to transfer from the refrigerant to the outdoor air. The refrigerant then condenses into a liquid.

Adequate airflow across the condenser coil is essential for proper heat rejection. Leaves, dirt, mulch, and dense vegetation can build up around an outdoor unit. When this happens, airflow becomes restricted. This makes it harder for the system to release heat outdoors.

Expansion Valve or Metering Device

Before the refrigerant returns to the evaporator coil, its pressure needs to be reduced. An expansion valve or metering device controls how much refrigerant enters the evaporator coil. It also creates the pressure drop needed to lower the refrigerant’s temperature.

The refrigerant is then ready to absorb heat from indoor air again, completing the basic refrigeration cycle.

Refrigerant and Refrigerant Lines

Refrigerant is the working fluid that transfers heat between the indoor and outdoor portions of a cooling system. As it moves through the refrigeration cycle, refrigerant shifts between liquid and vapor states. This process allows it to absorb heat indoors and release it outdoors.

Refrigerant lines connect the indoor and outdoor components. In residential systems, these lines are commonly made of copper. Refrigerant handling is regulated under federal law. Technicians who service equipment covered by EPA Section 608 must meet applicable certification requirements.

Air Handler and Blower Motor

The air handler is the indoor cabinet that typically houses the evaporator coil and blower motor. The air filter is usually installed in or near the return-air path. The blower motor powers the fan that pulls air from the return ducts. It then moves the air across the coil or heat exchanger before sending conditioned air through the supply ducts.

The blower, filter, coil, and ductwork all affect how effectively conditioned air moves through the home. A clogged filter or faulty blower can reduce airflow. Ductwork issues can also limit how much conditioned air reaches individual rooms.

Furnace and Heat Exchanger

A furnace provides heat for homes that use forced-air heating. Depending on the equipment, it may generate heat through gas combustion or electric resistance heating.

In a gas furnace, burners heat a metal heat exchanger. Household air passes around the heat exchanger and absorbs heat without mixing with the combustion gases. The blower then distributes the warmed air through the ductwork.

Ductwork, Registers, and Vents

Supply ducts carry conditioned air from the indoor equipment to different rooms. Return ducts bring indoor air back to the air handler for conditioning. Supply registers and return grilles are the visible points where air enters or leaves the living space. Homeowners often refer to both as vents.

Properly sized and sealed ductwork helps distribute air where it’s needed. Leaks, restrictions, or poor duct design can reduce airflow. This can lead to uneven temperatures throughout the home.

How Do HVAC Components Work Together?

These components work together by moving heat and air through the system. Tracing that movement helps explain how each part contributes to the whole.

How the Components Work During a Cooling Cycle

Cooling begins when the thermostat calls for a lower indoor temperature. The blower moves warm indoor air across the evaporator coil, where heat transfers into the refrigerant. The cooled air then returns to the living space through the supply ducts.

The refrigerant carries that heat to the outdoor unit, where the compressor raises its pressure before it enters the condenser coil. The outdoor fan helps release the heat into the surrounding air, causing the refrigerant to condense into a liquid.

The liquid then passes through the expansion device, which reduces its pressure before it returns to the evaporator coil. The cycle repeats until the thermostat signals that the desired temperature has been reached.

How the Components Work During a Heating Cycle

Heating begins when the thermostat signals the heating equipment. In a gas furnace, the burners heat the heat exchanger while the blower circulates air through the system and into the rooms.

With a heat pump, the refrigeration cycle reverses to transfer heat from outdoors into the home. The thermostat, airflow equipment, and ductwork coordinate the process regardless of system type. The exact sequence varies depending on the system being used.

How Airflow and Heat Transfer Connect the System

Airflow and heat transfer have to work together for an HVAC system to deliver comfortable conditions. The blower and ductwork move air through the system. The coils, refrigerant circuit, or heat exchanger then change that air's temperature.

A strong blower cannot fix a refrigerant problem that prevents effective cooling. Likewise, a properly functioning refrigeration system cannot deliver comfortable conditions if the blower or ductwork cannot move enough air. Both systems must work together to achieve the desired result.

What Happens When an HVAC Component Fails?

A problem with one component can affect the entire system, and the same symptom can have several possible causes. A symptom alone usually isn't enough to identify the failed part.

Common Signs of Component Problems

These signs point toward general areas of the system rather than definitive diagnoses. For example, weak airflow could result from a restricted filter, ductwork problem, coil issue, or blower problem. Identifying the cause requires examining the equipment and its operating conditions.

When a Component Needs Professional Diagnosis

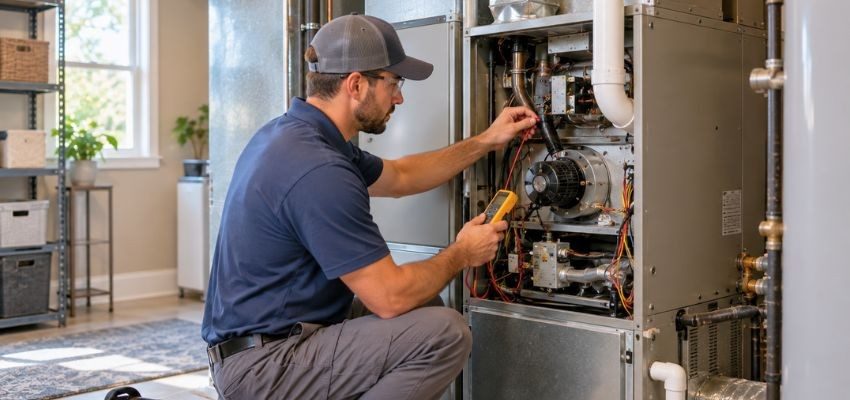

Some HVAC components require specialized tools, training, or safety procedures to diagnose and service. Electrical components can present shock hazards, while compressors require specialized testing. Furnaces also involve combustion and heat-exchange equipment that should be evaluated by a qualified professional when a problem is suspected.

Professional diagnosis helps identify the true cause of a problem. A technician can determine whether a component needs cleaning, adjustment, repair, or replacement. This prevents incorrect assumptions based on the most obvious symptom alone.

Frequently Asked Questions

What are the four main components of an HVAC system?

There isn't one universal four-component classification for every HVAC system. A typical central air-conditioning refrigeration cycle includes four major components: the evaporator coil, compressor, condenser coil, and expansion device. A complete HVAC system also depends on controls and airflow components. Where applicable, heating equipment is required as well.

How do the indoor and outdoor HVAC units work together?

The indoor unit uses the evaporator coil to remove heat from household air. The outdoor unit then releases that heat through the condenser coil. The compressor and refrigerant circuit connect these two sides of the system.

What is the difference between an evaporator coil and a condenser coil?

The evaporator coil is typically located indoors and absorbs heat from indoor air. The condenser coil is located outdoors and releases that heat into the surrounding air. Together, they allow the refrigeration cycle to transfer heat out of the home.

Can an HVAC system work if one component fails?

It depends on the component and the nature of the failure. Some problems may reduce performance without stopping the system entirely. However, if a critical component fails, such as the compressor, controls, or heating equipment, the system may stop working properly altogether.

Understanding Your HVAC Components

An HVAC system is only as effective as the components working together to control, condition, and distribute air. Understanding what each part does helps you know how your system works. It also makes it easier to explain the problem when you need to call an HVAC professional. If your system has weak airflow or isn't heating and cooling properly, it may be time for a professional inspection. Fahrenheit AC can help identify whether the issue is with a specific component or the system as a whole.
